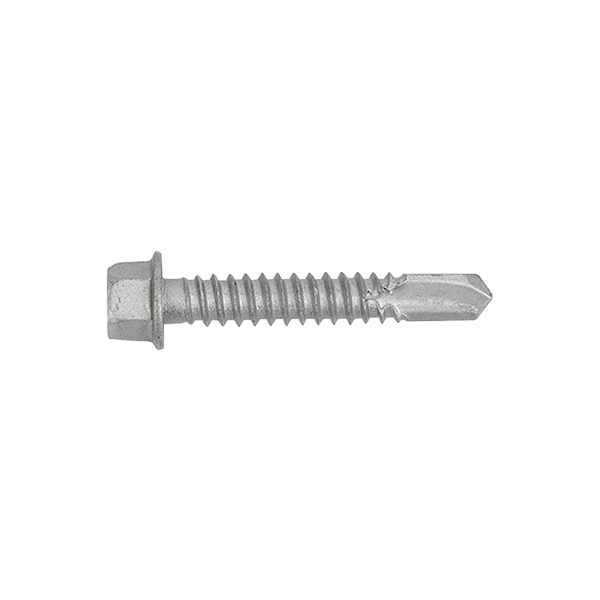

Hex Washer Head Self-Drilling Screw, w/EPDM Bonded Washer
Standard: DIN7504-K
Product Description
Hex washer head self-drilling screws with EPDM bonded washer for weather-seal applications.
Specifications
| Diameter | Length | Material | Surface | Point |
|---|---|---|---|---|
| 3.5 | 13-25 | C1022 Harden or SS A2/A4 | Z.P.L. M.Z.P.L. Decromat Ruspert | #2 |
| 4.2 | 13-75 | C1022 Harden or SS A2/A4 | Z.P.L. M.Z.P.L. Decromat Ruspert | #2 |
| 4.8 | 13-100 | C1022 Harden or SS A2/A4 | Z.P.L. M.Z.P.L. Decromat Ruspert | #3 |
| 5.5 | 19-125 | C1022 Harden or SS A2/A4 | Z.P.L. M.Z.P.L. Decromat Ruspert | #3 |
| 6.3 | 19-250 | C1022 Harden or SS A2/A4 | Z.P.L. M.Z.P.L. Decromat Ruspert | #3 |
