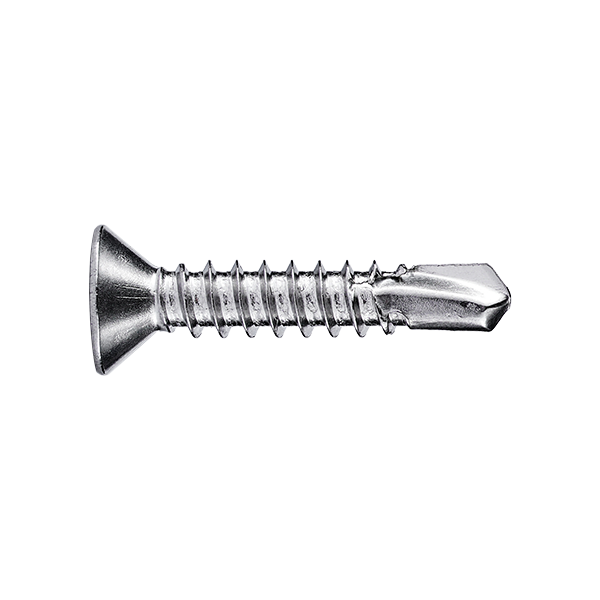

Stainless Steel Flat Head Self-Drilling Screw
Standard: DIN7504-P
Product Description
Stainless steel flat head self-drilling screws with countersunk for flush mounting. With or without ribs are all available.
Specifications
| Diameter | Length | Material | Surface | Point |
|---|---|---|---|---|
| 3.5mm | 9.5-19mm | SS A2/A4 | Polish | #2 |
| 3.9mm | 9.5-25mm | SS A2/A4 | Polish | #2 |
| 4.2mm | 32-50mm | SS A2/A4 | Polish | #2 |
| 4.8mm | 13-50mm | SS A2/A4 | Polish | #3 |
| #6 | 3/8-3/4" | SS A2/A4 | Polish | #2 |
| #7 | 3/8-1" | SS A2/A4 | Polish | #2 |
| #8 | 1-1/4-2" | SS A2/A4 | Polish | #2 |
| #9 | 1/2-2" | SS A2/A4 | Polish | #3 |
