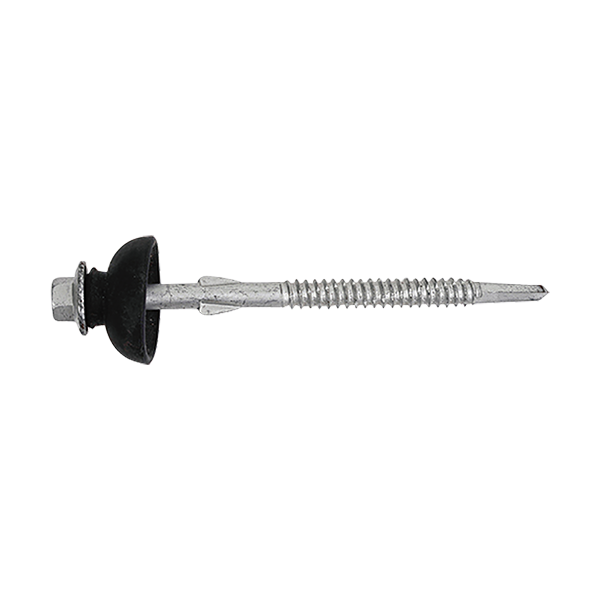

Hex Flange Head Self-Drilling Screw, With Wing
Standard: DIN7504-K
Product Description
Hex flange head self-drilling screws with wing design for drilling larger holes.
Specifications
| Diameter | Length | Material | Surface | Point |
|---|---|---|---|---|
| 4.8 | 13-75 | C1022 Harden or SS A2/A4 | Z.P.L. M.Z.P.L. Decromat Ruspert | #3 |
| 5.5 | 19-125 | C1022 Harden or SS A2/A4 | Z.P.L. M.Z.P.L. Decromat Ruspert | #3 |
| #10 | 1/2"~3" | C1022 Harden or SS A2/A4 | Z.P.L. M.Z.P.L. Decromat Ruspert | #3 |
| #12 | 3/4"~5" | C1022 Harden or SS A2/A4 | Z.P.L. M.Z.P.L. Decromat Ruspert | #3 |
