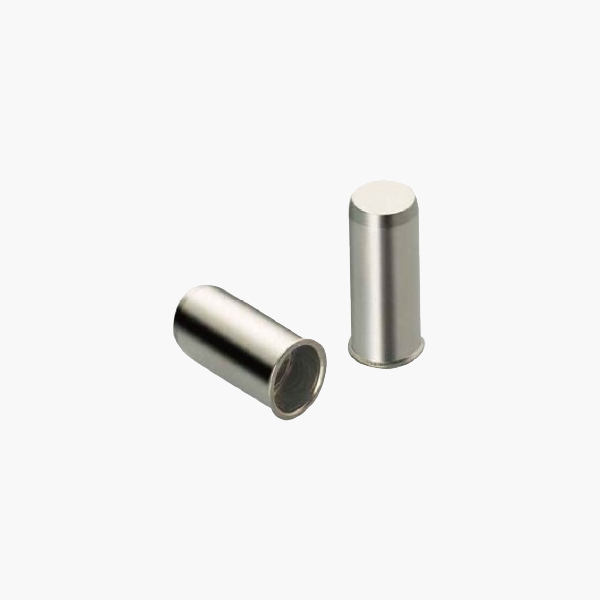

Reduced Head Round Body Blind Hole
Standard: DIN
Product Description
Reduced head round body Rivet Nuts for blind hole installations.
Specifications
| Thread | Grip Range | Hole Size | Surface Treatment |
|---|---|---|---|
| M3-0.5 | 0.5-1.5 | 5.0 | Z.P.L B.Z.P Ni.P Decromet Ruspert |
| M4-0.7 | 1.0-3.5 | 6.0 | Z.P.L B.Z.P Ni.P Decromet Ruspert |
| M5-0.8 | 2.5-5.0 | 7.0 | Z.P.L B.Z.P Ni.P Decromet Ruspert |
| M6-1.0 | 3.0-5.5 | 9.0 | Z.P.L B.Z.P Ni.P Decromet Ruspert |
| M8-1.25 | 3.5-6.0 | 11.0 | Z.P.L B.Z.P Ni.P Decromet Ruspert |
| M10-1.5 | 2.5-4.0 | 13.0 | Z.P.L B.Z.P Ni.P Decromet Ruspert |
| M12-1.75 | 4.0-6.5 | 15.0-16.0 | Z.P.L B.Z.P Ni.P Decromet Ruspert |
| M16-2.0 | 3.0-9.0 | 21.0 | Z.P.L B.Z.P Ni.P Decromet Ruspert |
