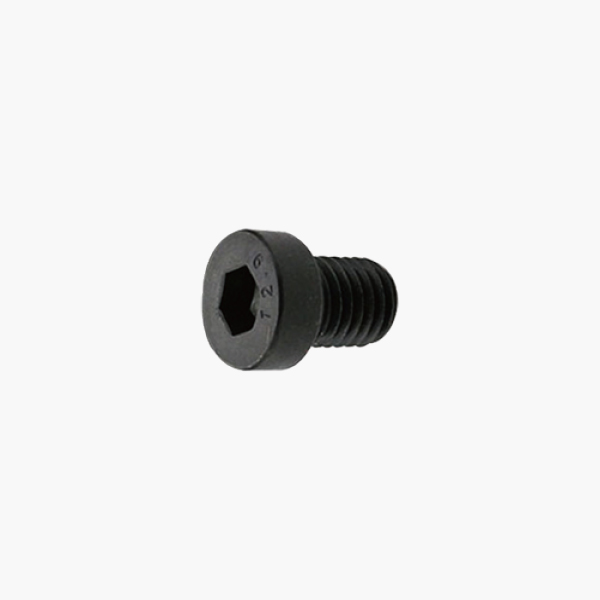

Cap Screw with Low Head
Standard: DIN6912
Product Description
Low head cap screws with socket drive, ideal for applications with limited clearance. Features a deeper socket for higher torque transmission.
Specifications
| Diameter | Length | Material |
|---|---|---|
| M4-0.7 | 8-40mm | 4.8, SS A2, SS A4, Brass |
| M5-0.8 | 8-65mm | 4.8, SS A2, SS A4, Brass |
| M6-1.0 | 10-100mm | 4.8, SS A2, SS A4, Brass |
| M8-1.25 | 12-100mm | 4.8, SS A2, SS A4, Brass |
| M10-1.5 | 16-100mm | 4.8, SS A2, SS A4, Brass |
