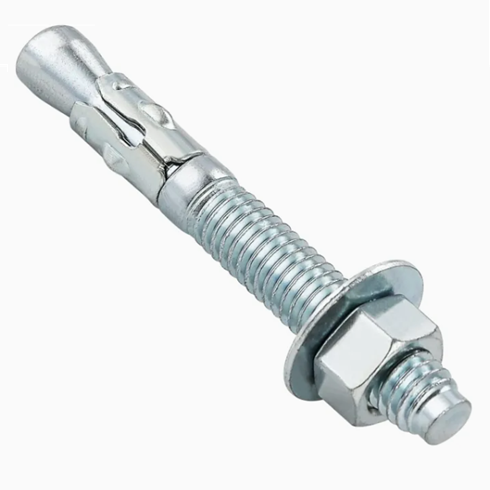

Wedge Anchor
Standard: DIN
Product Description
Wedge anchor for heavy-duty concrete applications. Features wedge expansion mechanism.
Specifications
| Diameter | Length | Material | Hole |
|---|---|---|---|
| 1/4" | 1-3/4-3-3/4" | Low Carbon Steel, SS A2/A4 | 1/4" |
| 3/8" | 2-1/4-5" | Low Carbon Steel, SS A2/A4 | 3/8" |
| 1/2" | 2-3/4-5-1/2" | Low Carbon Steel, SS A2/A4 | 1/2" |
| 5/8" | 3-1/2-10" | Low Carbon Steel, SS A2/A4 | 5/8" |
| 3/4" | 4-1/4-12" | Low Carbon Steel, SS A2/A4 | 3/4" |
| 7/8" | 6-10" | Low Carbon Steel, SS A2/A4 | 7/8" |
| 1" | 6-12" | Low Carbon Steel, SS A2/A4 | 1" |
